Ultrasound Probe P5-1Q - Phased Array Cardiac Transducer
The P5-1Q ultrasound probe is a phased transducer designed for adult cardiac, abdominal, pediatric cardiac, and adult cephalic imaging. It is compatible with AX2, AX3, and LX9 ultrasound systems and delivers dependable performance for routine and advanced examinations.
Clinicians use the P5-1Q probe for adult cardiac, abdominal, pediatric cardiac, and adult cephalic studies where consistent image quality is required. It is suitable as a primary or replacement phased transducer for AX3 series systems.
Clinical Applications
- Adult cardiac ultrasound imaging
- Abdominal ultrasound imaging
- Pediatric cardiac ultrasound imaging
- Adult cephalic ultrasound imaging
Transducer Specifications
| Transducer model | P5-1Q |
|---|---|
| Transducer type | Phased |
| Bandwidth @ -20 dB | 1-5 MHz |
| Bandwidth @ -6 dB | 1-5 MHz |
| Elements | 64 |
| Footprint | 16 mm |
| Convex radius | N/A |
| Field of view (FOV) | 90º |
| Display depth | 30 cm |
| Biopsy guide | Available |
| Cable length | 2.0 m |
Key Features
- Ultrasound probe optimized for AX2, AX3, and LX9 systems.
- Configured for adult cardiac, abdominal, pediatric cardiac, and adult cephalic applications.
- Frequency range 1-5 MHz with bandwidth 1-5 MHz for versatile clinical use.
- 64-element array designed to support diagnostic image quality.
- 2.0 m cable length for flexible probe positioning at the point of care.
Frequently Asked Questions
Is the P5-1Q probe compatible with AX2, AX3, and LX9 ultrasound systems?
Yes, the P5-1Q transducer is designed for use with AX2, AX3, and LX9 ultrasound platforms. Please verify compatibility with your specific configuration before ordering.
What types of exams is the P5-1Q best suited for?
The P5-1Q is best suited for adult cardiac, abdominal, pediatric cardiac, and adult cephalic imaging where reliable performance and consistent image quality are required.
Ready to order or need help confirming compatibility with your AX2, AX3, or LX9 system? Contact our ultrasound team, email us at sales@cincymed.com, or call +1 (513) 837-2834 for availability, current pricing, and bundle options.
Specifications are subject to change without notice. Probe compatibility and availability may vary by system configuration and region.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Product Details
Product Details
All instruments in the CincyMed catalog are sourced from vetted manufacturers and selected for performance in high-volume ambulatory surgery center and hospital environments. Each product is evaluated for compatibility, build quality, and clinical reliability before being added to our catalog.
For detailed technical documentation, IFU sheets, or compatibility questions, contact our support team at sales@cincymed.com.
Why CincyMed
Trusted by Surgeons
Our catalog is built on instruments that surgeons and OR teams actively choose for their procedures — selected for reliability and clinical performance.
Built for OR Teams
Every product is evaluated for compatibility and performance in high-volume ambulatory surgery center and hospital environments where consistency matters.
Transparent Pricing
No quotes, no hidden fees, no minimum orders. What you see is what you pay — so your purchasing team can move fast without back-and-forth.
Easy Reordering
Reorder the exact products your team needs directly from your account history — no need to re-search or re-confirm specs every time.
More in This Category
Ultrasound Probe MC9-3TQ - Micro Convex Pediatric Transducer
Choose your option

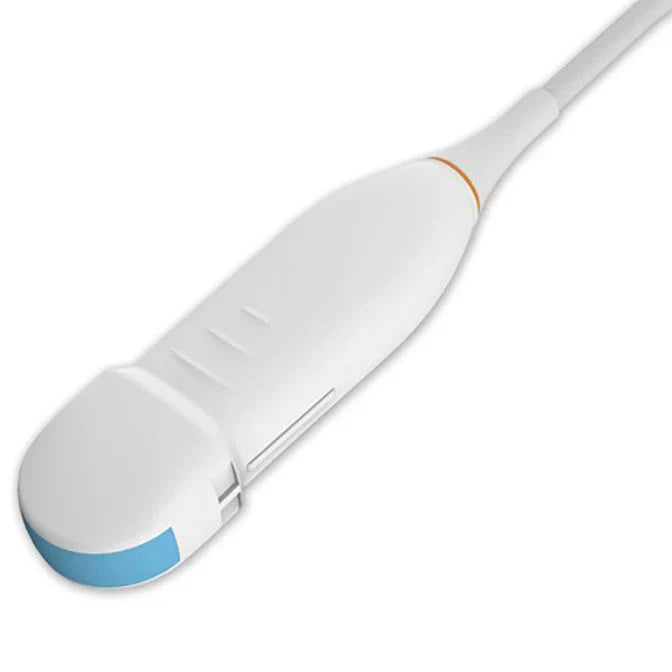

Ultrasound Probe MC8-4Q - Micro Convex Pediatric Transducer
Choose your option

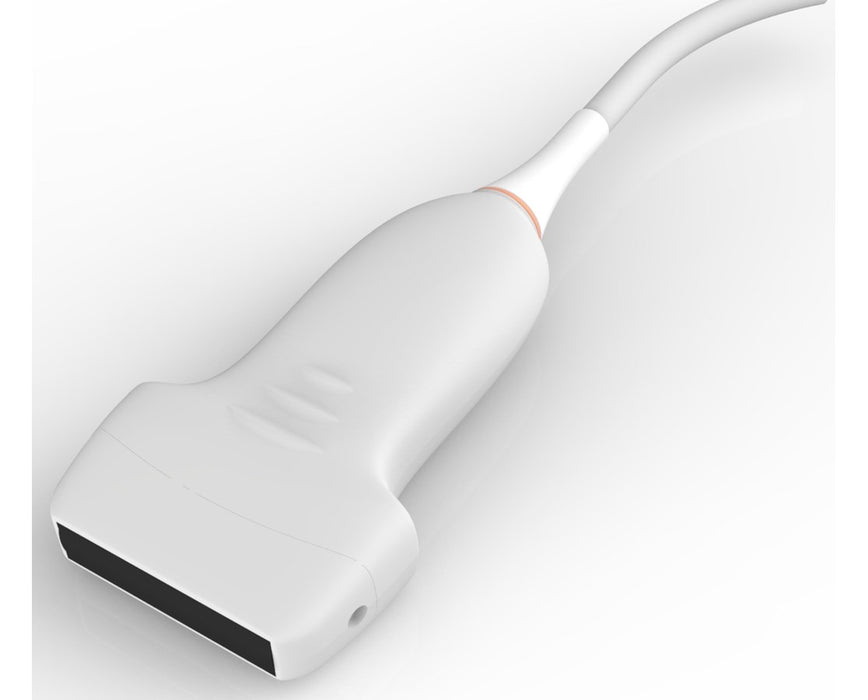

Ultrasound Probe L17-7HQ - Linear High-Frequency Transducer
