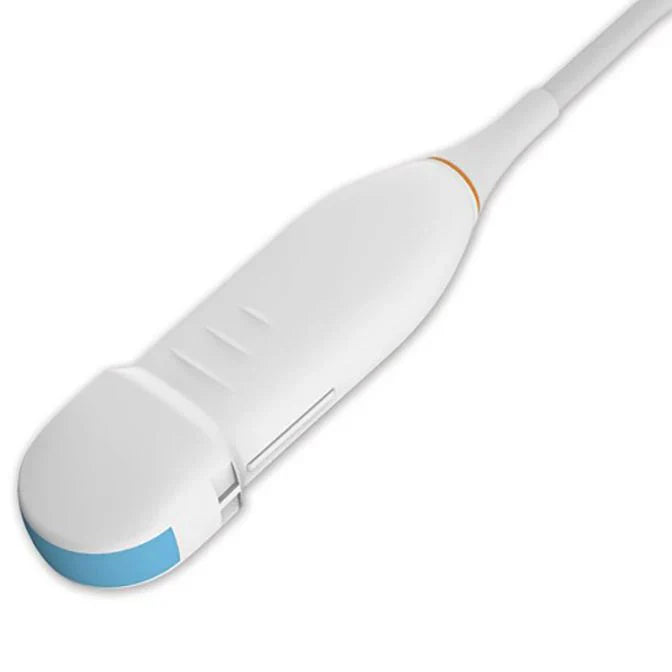

Ultrasound Probe MC8-4Q - Micro Convex Pediatric Transducer
The MC8-4Q ultrasound probe is a micro convex transducer designed for pediatric, abdominal, neonatal, peripheral vascular, and musculoskeletal imaging. It is compatible with AX2, AX3, and LX9 ultrasound systems and delivers dependable performance for routine and advanced examinations.
Clinicians use the MC8-4Q probe for pediatric, abdominal, neonatal, peripheral vascular, and musculoskeletal studies where consistent image quality is required. It is suitable as a primary or replacement micro convex transducer for AX3 series systems.
Clinical Applications
- Pediatric ultrasound imaging
- Abdominal ultrasound imaging
- Neonatal ultrasound imaging
- Peripheral vascular ultrasound imaging
- Musculoskeletal ultrasound imaging
Transducer Specifications
| Transducer model | MC8-4Q |
|---|---|
| Transducer type | Micro Convex |
| Bandwidth @ -20 dB | 3-10 MHz |
| Bandwidth @ -6 dB | 4-8 MHz |
| Elements | 128 |
| Footprint | N/A |
| Convex radius | 15 mm |
| Field of view (FOV) | N/A |
| Display depth | 15 cm |
| Biopsy guide | Available |
| Cable length | 2.0 m |
Key Features
- Ultrasound probe optimized for AX2, AX3, and LX9 systems.
- Configured for pediatric, abdominal, neonatal, peripheral vascular, and musculoskeletal applications.
- Frequency range 4-8 MHz with bandwidth 3-10 MHz for versatile clinical use.
- 128-element array designed to support diagnostic image quality.
- 2.0 m cable length for flexible probe positioning at the point of care.
Frequently Asked Questions
Is the MC8-4Q probe compatible with AX2, AX3, and LX9 ultrasound systems?
Yes, the MC8-4Q transducer is designed for use with AX2, AX3, and LX9 ultrasound platforms. Please verify compatibility with your specific configuration before ordering.
What types of exams is the MC8-4Q best suited for?
The MC8-4Q is best suited for pediatric, abdominal, neonatal, peripheral vascular, and musculoskeletal imaging where reliable performance and consistent image quality are required.
Ready to order or need help confirming compatibility with your AX2, AX3, or LX9 system? Contact our ultrasound team, email us at sales@cincymed.com, or call +1 (513) 837-2834 for availability, current pricing, and bundle options.
Specifications are subject to change without notice. Probe compatibility and availability may vary by system configuration and region.
