LX9 Diagnostic Ultrasound Machine

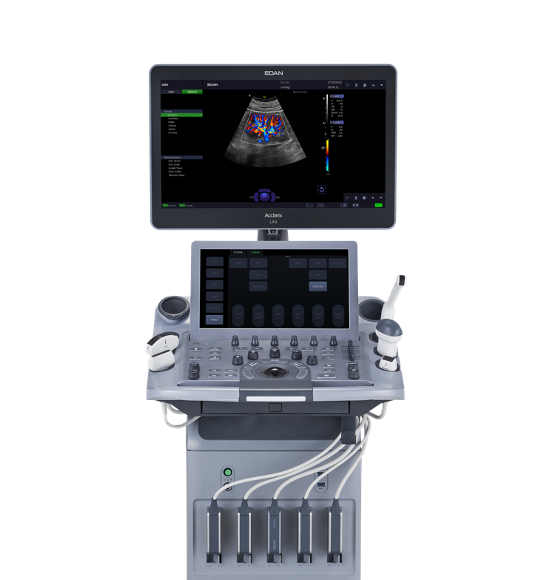

A premium Edan Acclarix LX9 cart-based ultrasound system with large dual displays, AI tools, and five probe ports for complex clinical workflows.
- 21.5-inch HD LCD and 14-inch touchscreen for clear imaging and fast control.
- Up to five probe ports and a compact cart to streamline multi-specialty workflows.
- AI-supported measurements and workflow tools to help standardize exams.
Edan Acclarix LX9 Overview

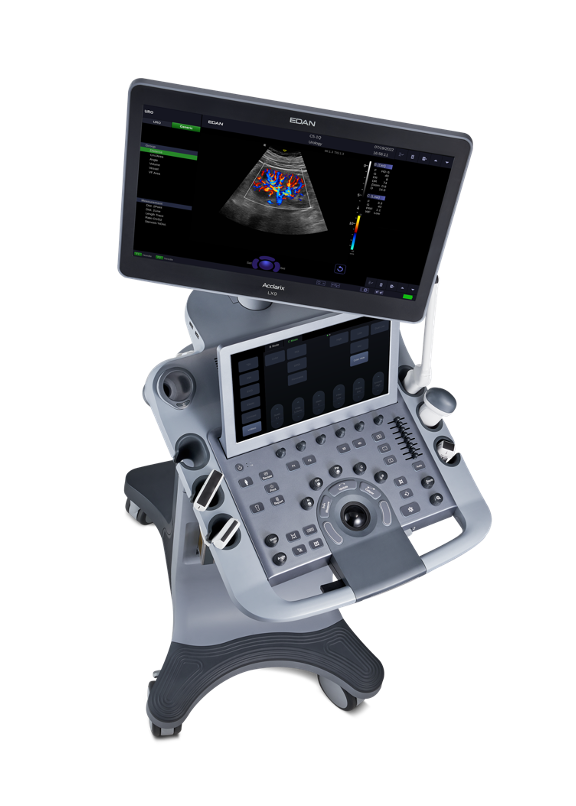

The Edan Acclarix LX9 is a premium, cart-based color Doppler diagnostic ultrasound system designed for departments that need high performance and efficient workflow in a single platform.
A 21.5-inch HD LCD, 14-inch touchscreen, AI-supported tools, and up to five active probe ports help your team manage complex imaging across general imaging, cardiology, OB/GYN, and vascular labs.
Key Features and Clinical Benefits
- Large 21.5-inch HD LCD main display and 14-inch responsive touchscreen for clear visualization and intuitive control during exams.
- Up to five active transducer ports, allowing quick switching between probes for multi-specialty and multi-patient workflows.
- Premium imaging platform with advanced beamforming and high-channel architecture to support detailed imaging at depth.
- AI-supported tools and smart measurement packages designed to help standardize exams and save time on repetitive tasks.
- Advanced imaging modes such as harmonic imaging, speckle reduction, spatial compounding, and high-performance Doppler to improve contrast and detail.
- Compact, height-adjustable cart with integrated storage and cable management to keep the system organized in busy clinical areas.
- Broad application support including abdominal, OB/GYN, cardiac, vascular, MSK, small-parts, and pediatric imaging, according to labeled indications.
Typical Clinical Applications
The LX9 Diagnostic Ultrasound Machine is designed for use in radiology, cardiology, OB/GYN, vascular labs, internal medicine, and multi-specialty clinics where a single high-performance platform must support a wide range of exams.
LX9 Diagnostic Ultrasound Specifications
System and Physical
| System type | Premium cart-based color Doppler diagnostic ultrasound system. |
|---|---|
| Main display | 21.5-inch HD LCD monitor with wide viewing angle. |

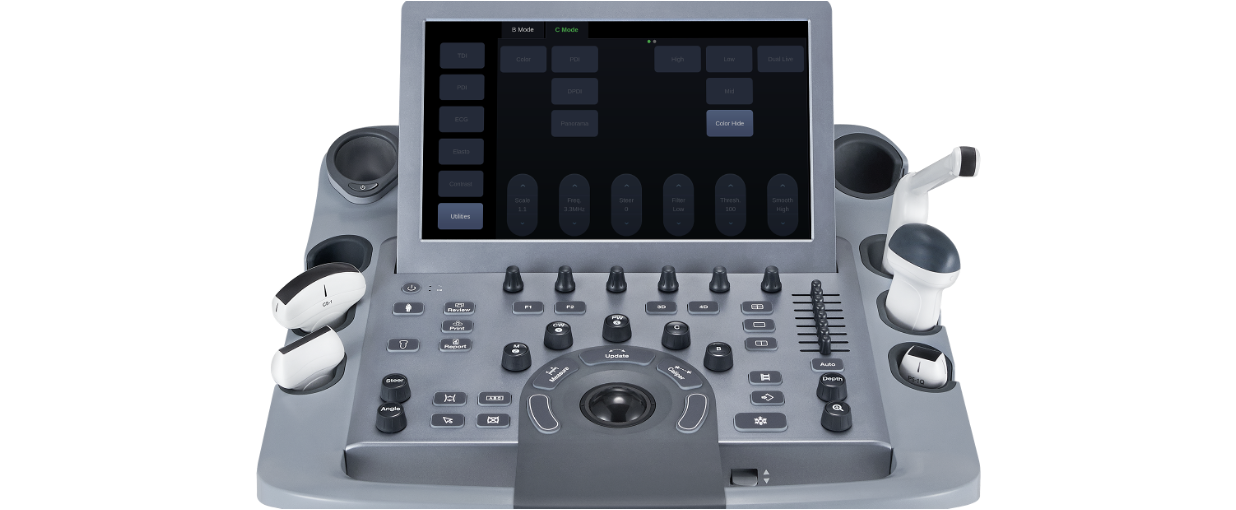

| Touchscreen | 14-inch capacitive touchscreen for gesture-based control and quick access to functions. |
| Transducer ports | Up to five active transducer ports to support multi-specialty workflows. |
| Cart | Compact, height-adjustable trolley with integrated storage, cable management, and probe holders. |
| Power | Mains-powered system; battery options depend on configuration (refer to datasheet). |
Imaging and Modes

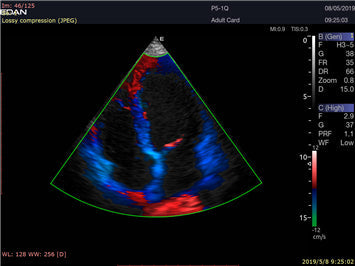

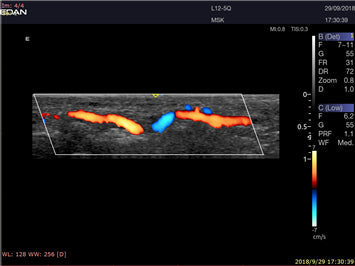

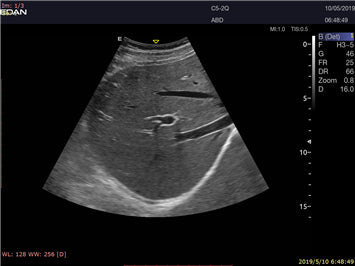

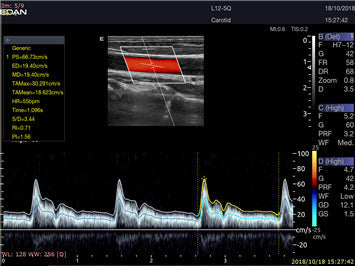

| Imaging modes | B-mode, M-mode, Color Doppler, Power Doppler, PW Doppler, CW Doppler; dual and triplex combinations on supported presets. |
|---|---|
| Advanced imaging | Harmonic imaging, speckle reduction, spatial compound imaging, high-frame-rate imaging, and needle visualization (as configured). |

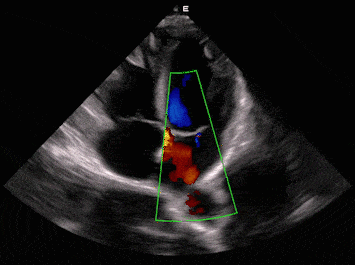

| Cardiac & vascular | Comprehensive cardiac and vascular packages with measurement tools for adult and pediatric exams (where enabled). |
Workflow and Data Management
| AI and automation | AI-supported measurement and workflow tools designed to help standardize protocols and reduce manual steps. |
|---|---|
| Data storage | Internal solid-state storage (SSD) for images and cine loops; capacity varies by configuration. |
| Connectivity | DICOM networking, USB export, and network transfer; optional wireless connectivity depending on configuration. |
Specifications may change over time. For the most current and complete details, refer to the official Acclarix LX9 datasheet and your local product labeling.
Ordering, Configurations, and Compliance
The LX9 Diagnostic Ultrasound Machine is available in multiple configurations so you can align probe sets, clinical packages, and workflow options with your department’s needs.
- Base configuration: LX9 main unit with 21.5-inch LCD, 14-inch touchscreen, power supply, and standard accessories.
- Optional probes: wide range of convex, linear, phased-array, and specialty transducers for abdominal, OB/GYN, cardiac, vascular, MSK, and small-parts exams.
- Optional clinical packages: enhanced cardiac, vascular, OB/GYN, and other application packages to support specialty workflows.
- Optional accessories: printers, additional storage, and workflow accessories to support departmental use.
Regulatory clearances, indications for use, and product availability vary by country and region. This information is intended for healthcare professionals. Always consult the official labeling, Instructions for Use (IFU), and local regulations for complete indications, contraindications, warnings, and safety information.
LX9 Diagnostic Ultrasound FAQs
What is the LX9 Diagnostic Ultrasound Machine designed for?
The LX9 Diagnostic Ultrasound Machine is designed as a premium cart-based color Doppler system for comprehensive general imaging, cardiology, OB/GYN, vascular, musculoskeletal, and small-parts exams, according to its labeled indications.
What makes the Edan Acclarix LX9 different from other ultrasound systems?
The Edan Acclarix LX9 combines a large 21.5-inch LCD, 14-inch touchscreen with gesture control, AI-supported tools, and five probe ports in a compact cart-based design, helping clinicians manage complex workflows efficiently.
Does the LX9 connect to PACS and hospital systems?
Yes. The LX9 supports DICOM networking and data export via USB and network connections, enabling integration with PACS and hospital information systems when configured according to your site’s requirements.
Service, Training, and Support
We support your investment in the LX9 Diagnostic Ultrasound Machine with service plans, training, and technical assistance designed to keep your ultrasound program running smoothly and to help clinicians feel confident in daily use.
- Flexible warranty and service options tailored to your facility.
- Onsite or remote applications training for physicians, sonographers, and staff (where available).
- Technical support and parts through authorized service channels.
