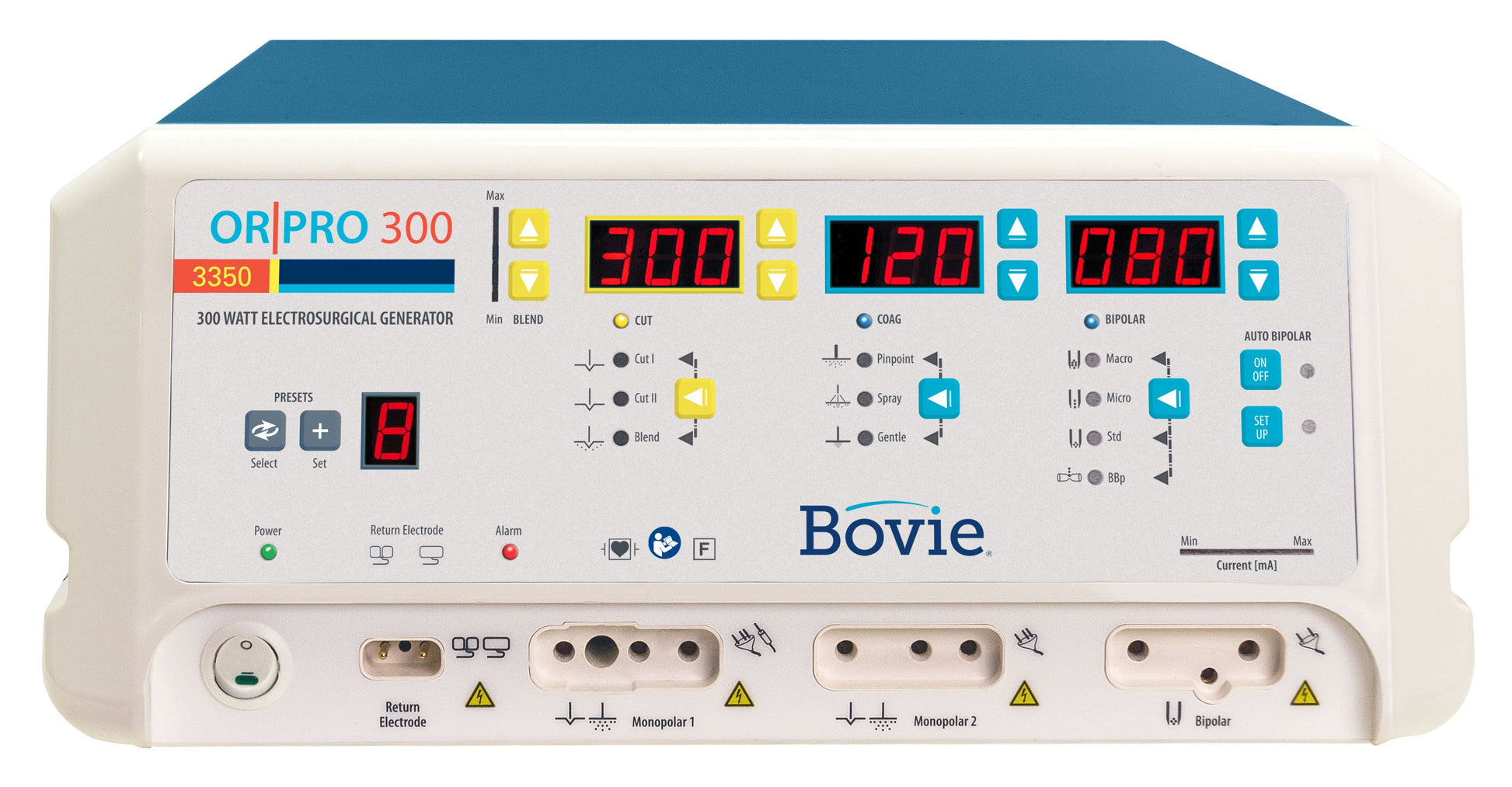

BOVIE OR | PRO 300 Electrosugical Generator

The Bovie OR | PRO 300 system was designed in conjunction with O.R. clinicians to provide a safe, user-friendly generator to meet all operating room procedure performance demands. This innovative energy-based device offers 13 modes of surgical energy delivery. Special modalities include the advanced Bovie Bipolar, Auto Bipolar options, as well as special Laparoscopic modes that enable surgeons to select the right generator to meet their requirements for a variety of surgical applications and preferences.

Products Included A3350

• (1) electrosurgical generator
• 110 VAC Hospital-grade power cord
• 220 VAC Hospital-grade power cord
• User’s guide (MC-55-230-001)

Dimensions

• Height: 16.5cm (6.5”)
• Width: 37.5cm (14.75”)
• Depth: 46cm (18.1”)
• Weight: <9.07kg (<20lbs)

Output Power

• Cut I & II: 300 watts
• Blend (1-4): 200 watts
• Pinpoint Coagulation: 120 watts
• Spray Coagulation: 120 watts
• Gentle Coagulation: 120 watts
• Macro Bipolar: 150 watts
• Micro Bipolar: 80 watts
• Standard Bipolar: 50 watts
• Bovie® Bipolar: 225
• Auto Bipolar: 80

Output Frequency

490 kHz ± 5 kHz

Line Voltage

100 – 240 VAC

Line Frequency

50 – 60 Hz

Warranty: FOUR YEARS

Optional Accessories

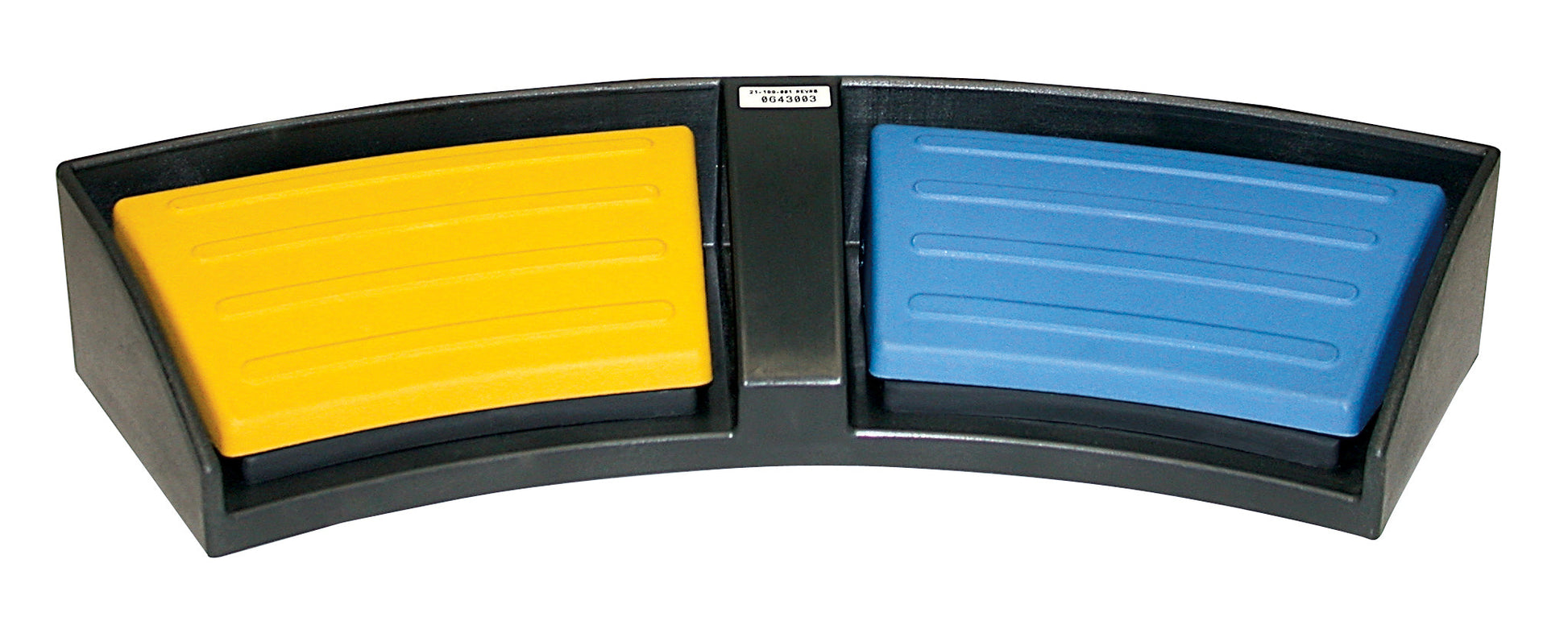

• BV-1253B: Monopolar Footswitch Bovie

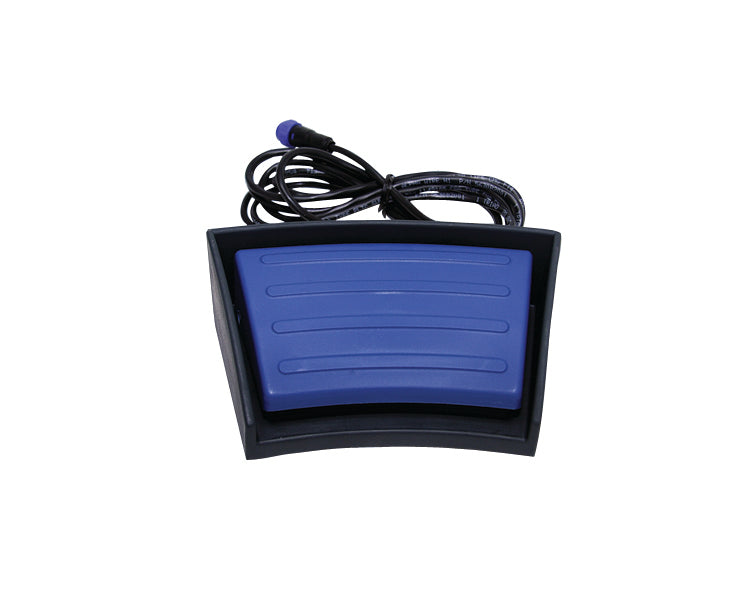

• BV-1254B: Bipolar Footswitch Bovie

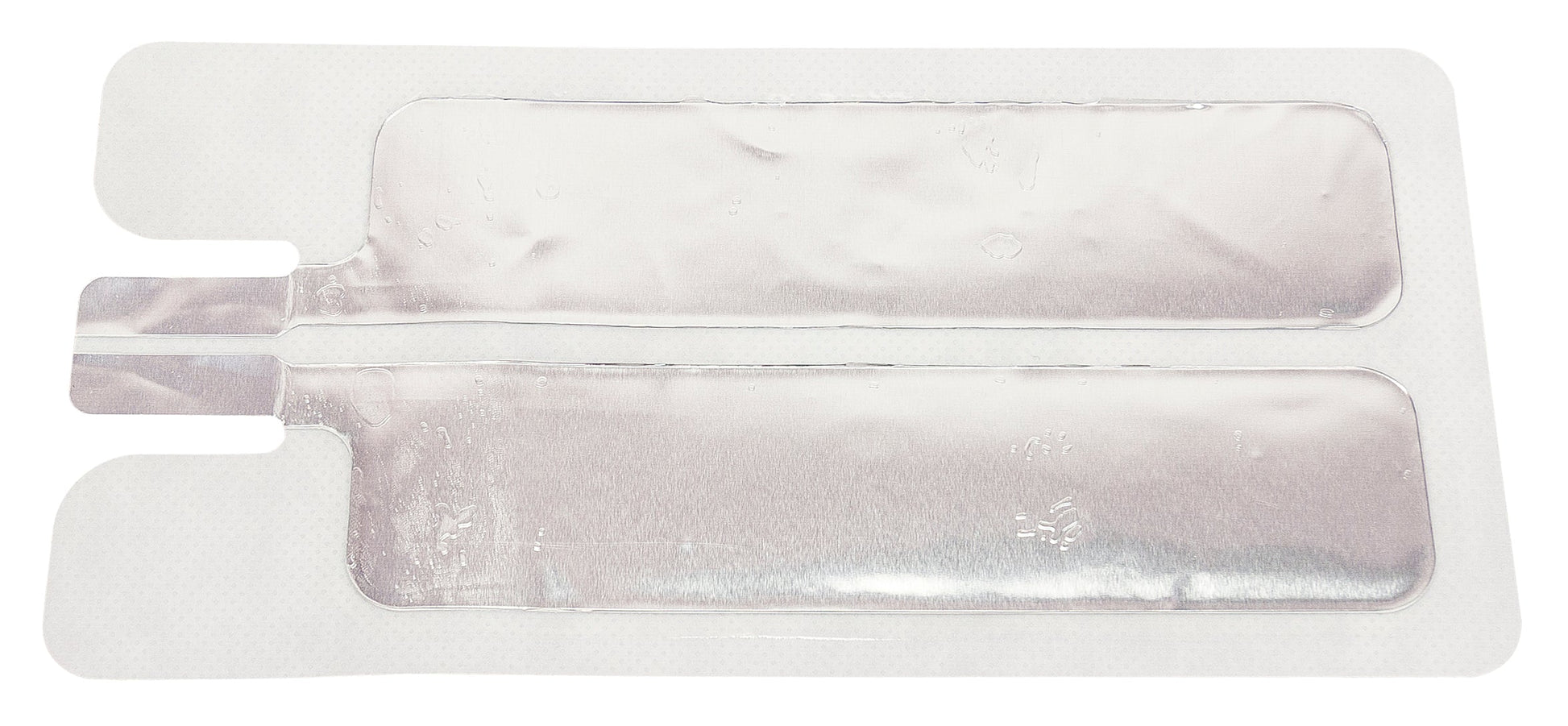

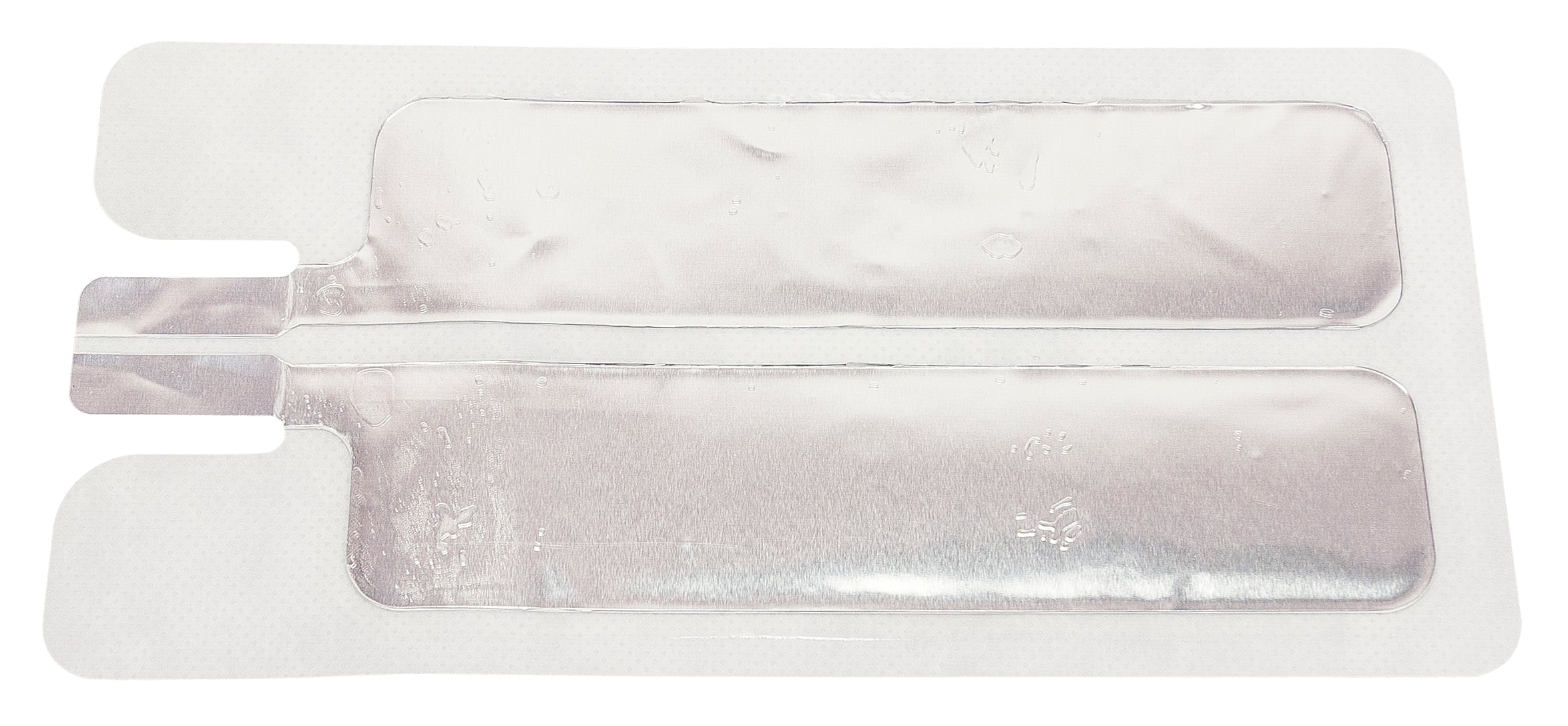

• ESRE: Return Split Pads Disposable Bx/50

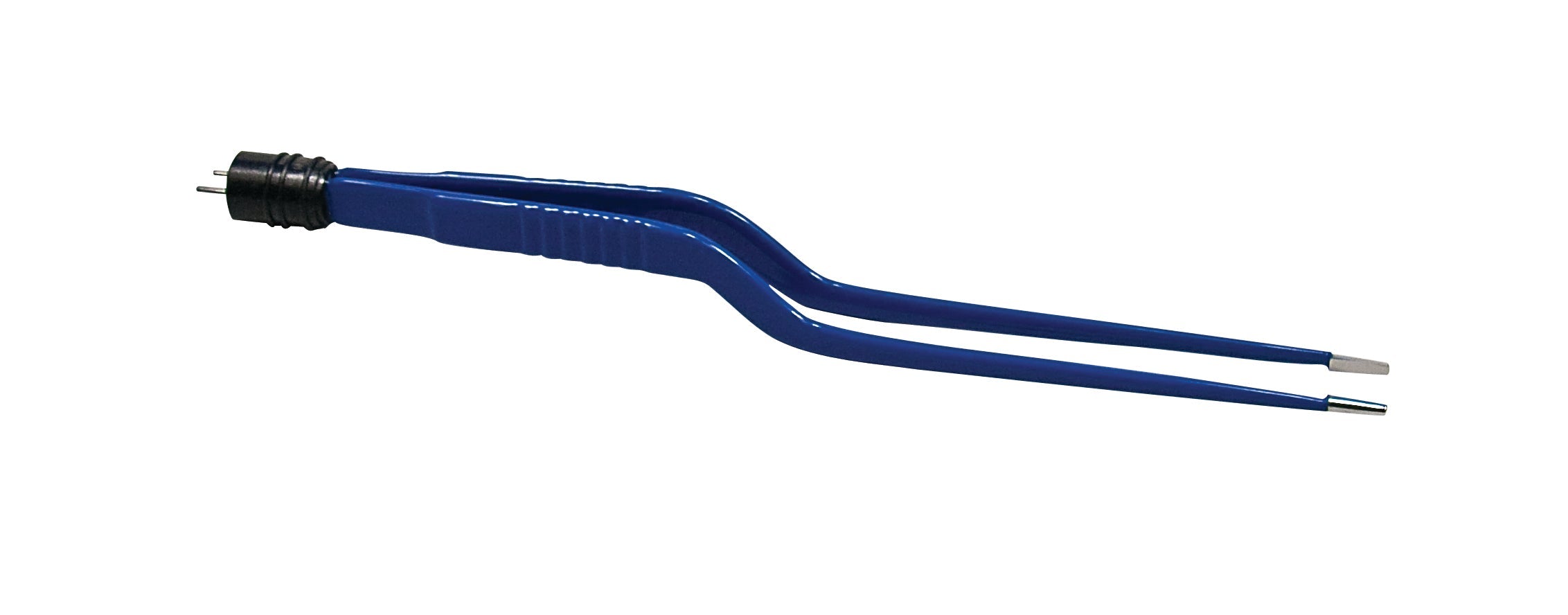

• A821: Bipolar Forceps 8" Bayonet 2mm Tip
• A1255A: Foot Control Adapter Plug (For Use With footswitching pencil and A3350, A2350 and A1250S Generators)

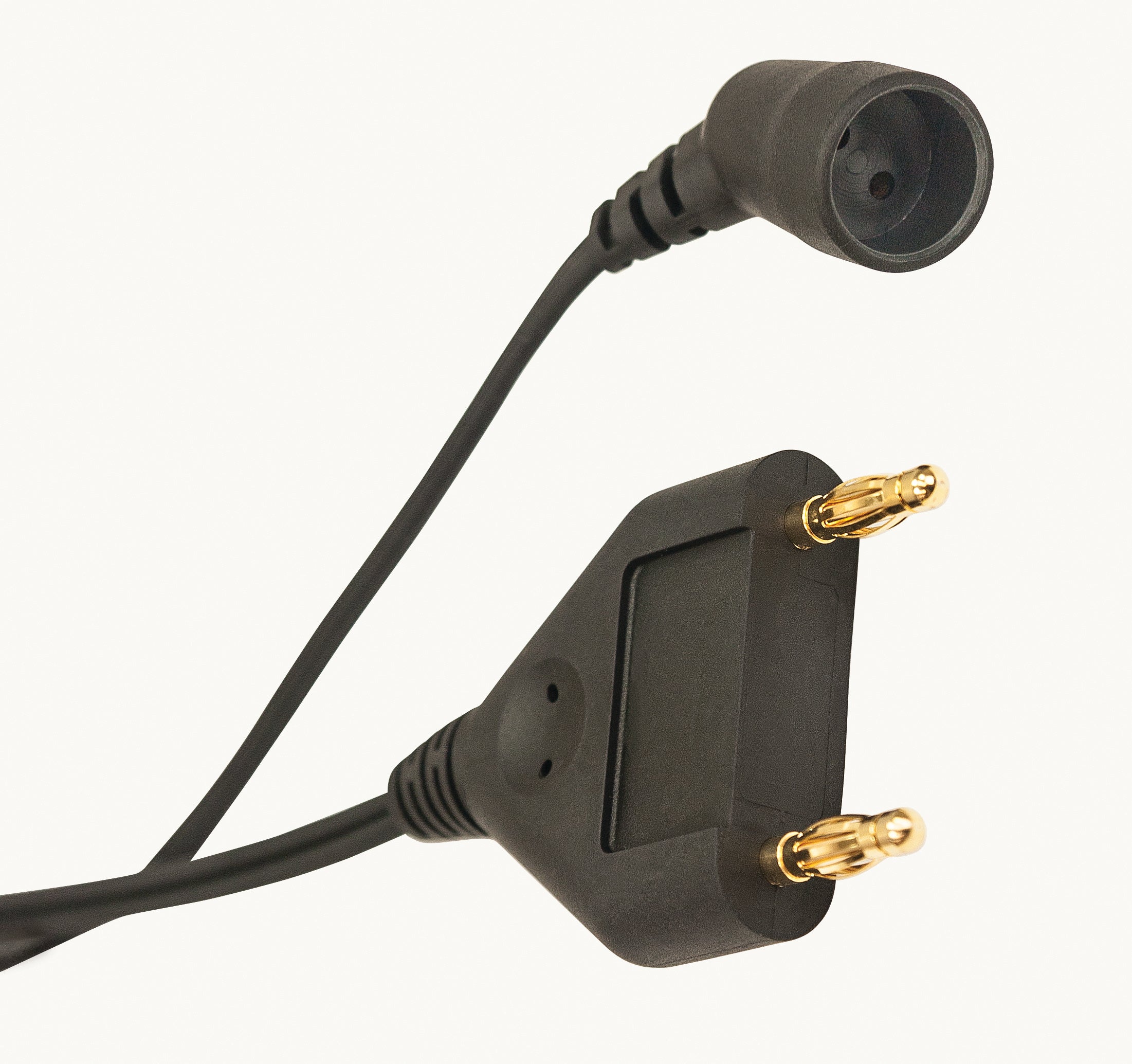

• A827V: Bovie Bipolar Cord, 28mm Fixed Pin, Reusable, For use with: A2250, A2350, A3250, A3350, IDS200, IDS210, IDS300, IDS310, IDS400, DERM101, DERM102, A942, A952 and A1250S Generators

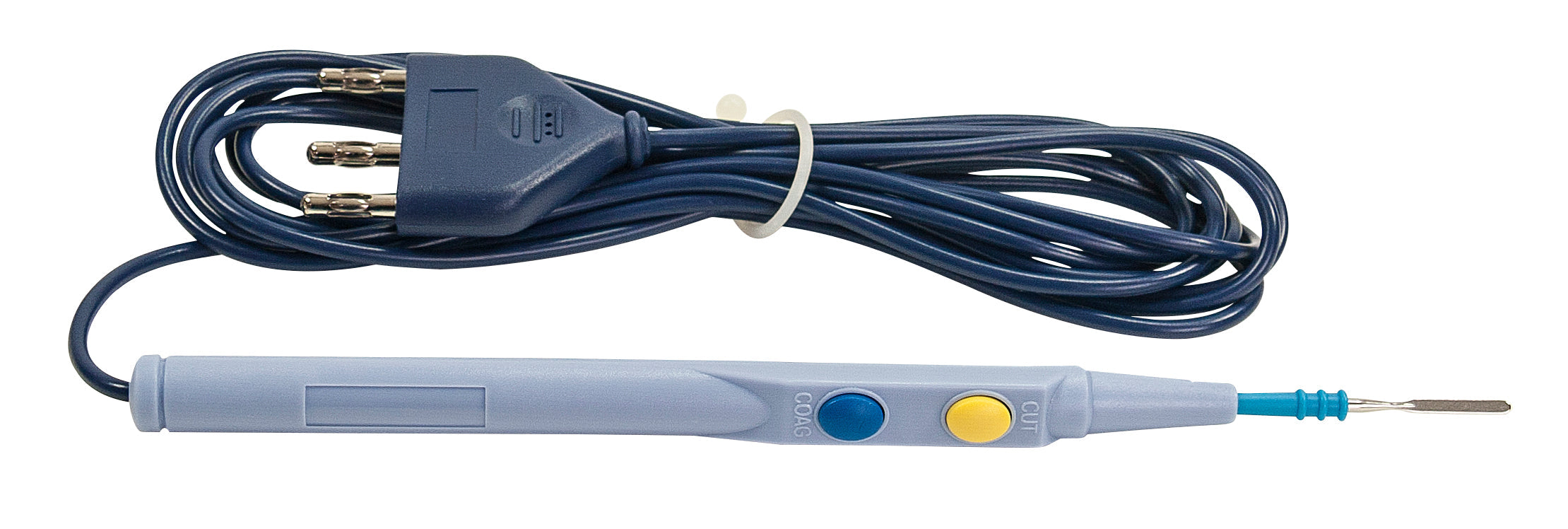

• ESP1: Push Button Electrosurgical Pencil 50/Box

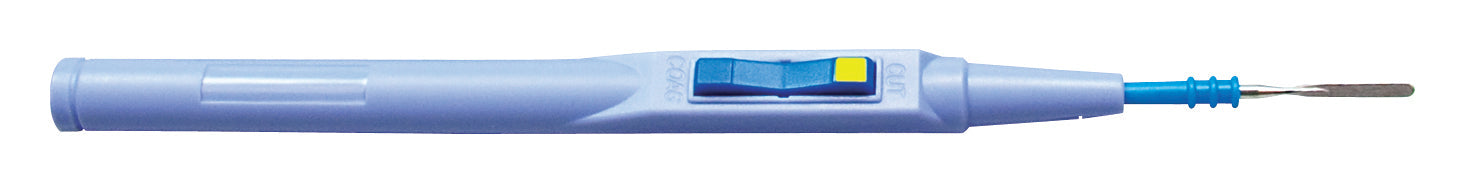

• ESP6: Electrosurgical Rocker Pencil 50/Bx

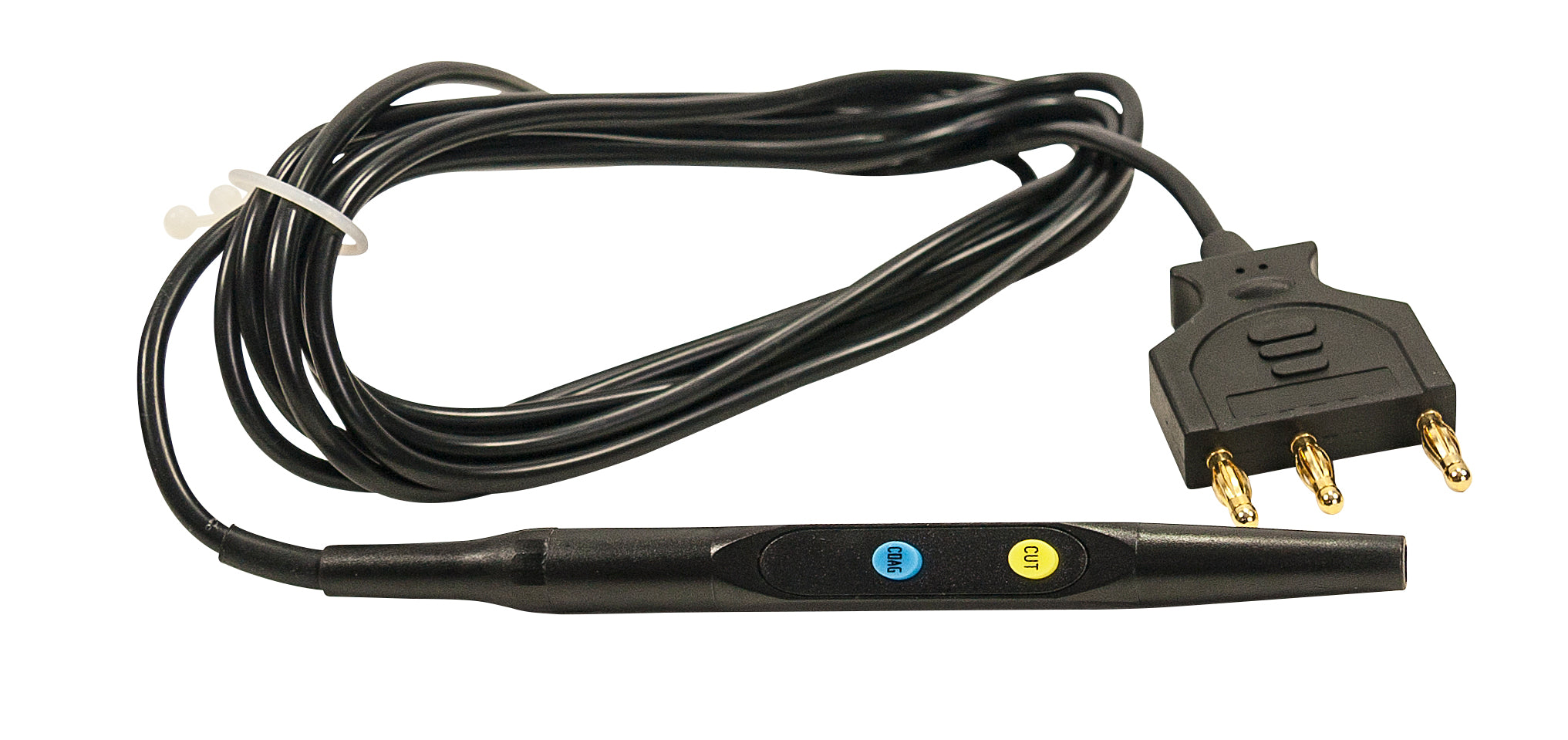

• ESPR2: Reusable Electro-Surgical Pencil; 100 Autoclaves

• BV-IDS-CS2: Mobile Cart - Standard
